Elastomer Sleeve Knife Gate Valve
The Elastomer Sleeve Knife Gate Valve is a specialized valve designed to handle highly abrasive, corrosive, and slurry-based applications. Unlike traditional designs, this valve uses two reinforced elastomer sleeves that form a pressure-resistant seal around the gate. The sleeves act as both the seat and seal, ensuring 100% tight shutoff with no leakage to the atmosphere. This makes the valve an excellent choice for industries where safety, reliability, and minimal downtime are critical.
Let’s Help You Specify the Right Knife Gate Valve
Be careful when choosing a new valve supplier, the disappointment of poor quality can last much longer than the joy of a low price!
Key Features
Dual Elastomer Sleeves: Provide a bubble-tight, bidirectional shutoff while isolating the body and gate from the process media.
No Cavity Design: Prevents clogging by eliminating areas where solids can accumulate.
Self-Cleaning Gate: The sleeves scrape the gate during operation, reducing buildup and wear.
Replaceable Sleeves: Quick replacement without removing the valve from the pipeline.
Zero Leakage to Atmosphere: Enhanced safety in handling hazardous or corrosive slurries.

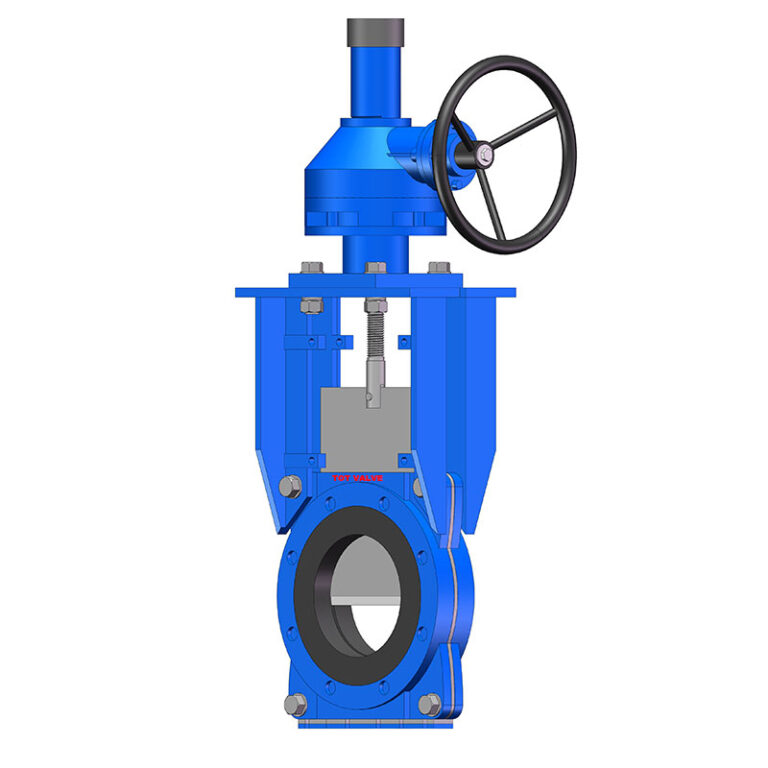

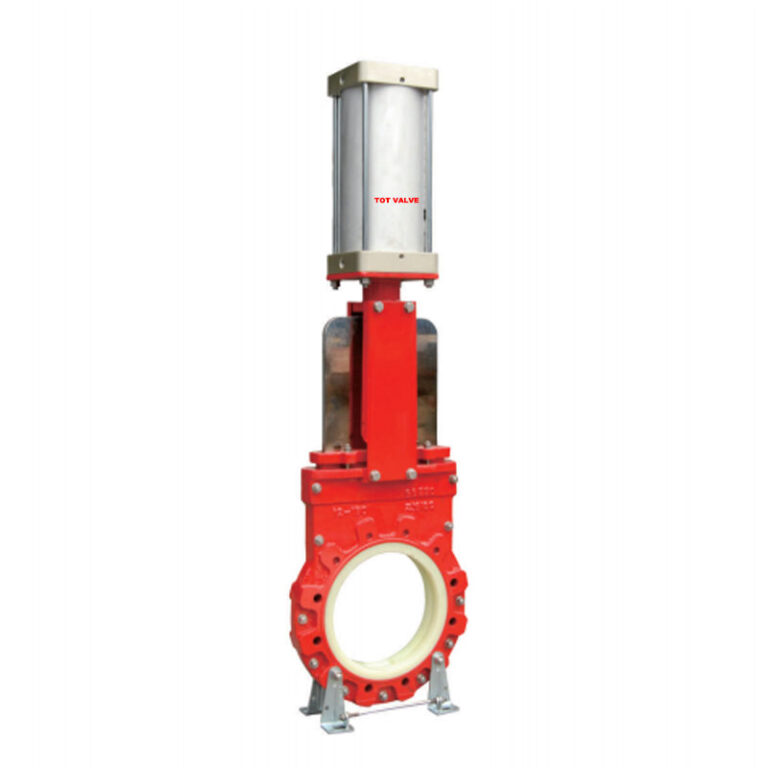

Versatile Actuation Options: Manual, gear-operated, pneumatic, hydraulic, or electric actuation available.
Materials & Construction
Body Materials: Cast iron, ductile iron, carbon steel, or stainless steel.
Sleeve Materials: Natural rubber, EPDM, NBR, Neoprene, or other elastomers depending on media type and temperature.
Gate Materials: Stainless steel or alloy steel, often coated for abrasion resistance.
Sealing Mechanism: Dual elastomer sleeves compress against each other to seal the gate and pipeline.
Sizes & Pressure Ratings
Standard Sizes: 2″ to 48″ (DN50–DN1200)
Pressure Ratings: Typically up to PN10 / ANSI 150
Temperature Range: -20°C to +120°C (depending on sleeve material)
Applications
Elastomer Sleeve Knife Gate Valves are ideal for industries handling abrasive, viscous, or corrosive media, including:
Mining & mineral processing (slurry, tailings, concentrates)
Pulp & paper industry (pulp stock, recycled paper, black liquor)
Wastewater treatment (sludge, grit, aeration systems)
Chemical plants (corrosive liquids and slurries)
Power generation (fly ash, bottom ash, FGD systems)
Advantages of Elastomer Sleeve Knife Gate Valves
Zero Leakage Design: Bidirectional, bubble-tight shutoff.
Extended Service Life: Elastomer sleeves protect the body and gate from direct media contact.
Reduced Maintenance: Self-cleaning gate and replaceable sleeves minimize downtime.
Safe Operation: No leakage to atmosphere ensures safety in handling hazardous media.
Cost-Effective: Low life-cycle cost due to long-lasting sleeves and simplified maintenance.
* We are not just providing simple quotes but experts in selection, calculation, and drawing.
Elastomer Sleeve Knife Gate Valve – FAQ
An elastomer sleeve knife gate valve is a specialized knife gate valve that uses two reinforced elastomer sleeves as the sealing mechanism. The sleeves form a pressure-tight, bidirectional seal around the gate, preventing leakage to the atmosphere and ensuring reliable shutoff in abrasive, corrosive, or slurry applications.
Unlike resilient or metal seated knife gate valves, the elastomer sleeve design isolates the body and gate from direct contact with the media. This reduces wear, eliminates internal cavities where solids could build up, and provides 100% tight shutoff with zero leakage.
Standard sizes range from 2" to 48" (DN50–DN1200). Typical pressure ratings are up to PN10 / ANSI 150, depending on the valve design and elastomer material.
Body Materials: Cast iron, ductile iron, carbon steel, or stainless steel.
Sleeves: Elastomers such as Natural Rubber, EPDM, NBR, Neoprene, or other custom compounds.
Gate Materials: Stainless steel or alloy steel, often hardened or coated to resist abrasion.
These valves can be manually operated or equipped with gear, pneumatic, hydraulic, or electric actuators to meet automation and system requirements.
They are widely used in industries such as:
Mining & Mineral Processing: Slurry, tailings, and concentrate transport
Pulp & Paper: Pulp stock, recycled paper systems, black liquor
Wastewater Treatment: Sludge, grit, and aeration lines
Chemical Plants: Corrosive and abrasive liquids or slurries
Power Generation: Fly ash, bottom ash, and flue gas desulfurization (FGD) systems
Bubble-tight, bidirectional shutoff
Zero leakage to atmosphere for safe operation
Self-cleaning gate reduces clogging and buildup
Replaceable sleeves extend valve life and lower maintenance costs
Protection of valve body and gate from direct media contact
The choice of elastomer depends on the type of media, operating temperature, and chemical compatibility. For example, EPDM is suitable for water and mild chemicals, NBR for oils, and Natural Rubber for abrasive slurries. Our team can recommend the best option for your application.
Provide details including valve size, pressure rating, body material, elastomer sleeve type, actuator option, and operating conditions. Our sales team will prepare a tailored quotation within 24 hours. Bulk and large-scale orders may qualify for special discounts.
