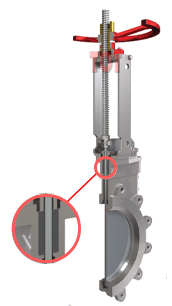

High Temperature Knife Gate Valve
The High Temperature Knife Gate Valve is specifically engineered to perform reliably and safely in services where media temperatures far exceed the limits of standard industrial valves (typically above or ). This valve is essential in high-stress industries like power generation, petrochemicals, and metallurgy, where maintaining structural integrity and leak-tight isolation under intense heat is non-negotiable.
Let’s Help You Specify the Right Knife Gate Valve
Be careful when choosing a new valve supplier, the disappointment of poor quality can last much longer than the joy of a low price!
Key Design Solutions for Thermal Service
A reliable high-temperature valve must overcome the challenges of thermal expansion and material degradation. This valve achieves this through specialized design features:
1. Metal-Seated Seal System
Sealing Principle: Unlike standard valves that fail when their soft, elastomer seals degrade under heat, this valve utilizes a metal-to-metal seating arrangement.
Material Hardening: Both the gate and the seat faces are typically constructed from heat-resistant stainless steel or receive specialized hardfacing treatments (e.g., Stellite overlay) to maintain hardness and integrity at extreme temperatures.
Isolation: While not always “bubble-tight,” this system provides the most robust and reliable shut-off available for sustained high-temperature service.
2. Bonneted and Extended Structure
Safety and Containment: High-temperature valves are almost always built with a Bonneted (enclosed body) design. This structure provides an essential seal and barrier, preventing the sudden, dangerous release of hot media.
Heat Dissipation: A critical design feature is the extended bonnet or cooling section above the packing gland. This extension ensures that the packing materials are situated in a relatively cooler zone, preventing the premature failure of the stem seal due to overheating.
3. High-Performance Stem Packing
Flexible Graphite (Foil/Ribbon): This is the primary choice for high-temperature knife gate valves. Unlike conventional synthetic or PTFE packings, graphite is chemically inert and has an extremely high thermal resistance, capable of reliably sealing temperatures well above .
Ceramic Fiber Packing: In some ultra-high temperature or specialized chemical applications, packings woven from ceramic fiber are used, though Flexible Graphite remains the most common industrial solution.
In-Service Requirements: Even with the best materials, the packing gland area must be protected by the extended bonnet design (heat dissipation) to keep the packing temperature as low as possible, maximizing its lifespan and sealing integrity.
High Temperature Knife Gate Valve Data Sheet
| Parameter | Details |
|---|---|
| Body Material | Stainless Steel (SS304 / SS316) / Duplex Steel / High-Temperature Alloy |
| Gate Material | Stainless Steel / Duplex Steel / Alloy Steel |
| Seat Options | Metal Seat, PTFE, Graphite (high-temperature) |
| Packing | Graphite, Braided Aramid, PTFE |
| Pressure Rating | PN10 / PN16 / ANSI 150 / custom |
| Face-to-Face | Customizable |
| Connection | Wafer / Lug / Flanged |
| Actuation | Manual, Chainwheel, Electric, Pneumatic, Hydraulic |
| Temperature Range | Up to 550°C depending on materials |
Why Choose High Temperature Knife Gate Valves?
For high-temperature applications, these valves offer:
Thermal Resistance: Designed to withstand high temperatures without warping or degradation.
Reliable Shut-Off: Blade gate ensures tight sealing even under thermal expansion.
Durable Construction: Stainless steel, duplex, or high-temperature alloys resist corrosion and heat.
Multiple Actuation Options: Manual, chainwheel, electric, pneumatic, or hydraulic.
Low Maintenance: Heat-resistant seat and packing reduce wear and service intervals.
How Our High Temperature Knife Gate Valves Are Built for Performance
Full Bore Flow: Smooth, unobstructed flow reduces turbulence and pressure drop.
Razor-Sharp Gate: Blade gate slices through high-temperature media and solids.
Corrosion- & Heat-Resistant Construction: High-grade materials maintain integrity under thermal stress.
Multiple Actuation Options:
Manual Handwheel or Chainwheel
Electric Actuator
Pneumatic Cylinder
Hydraulic Actuator
Resilient Seat Options: Metal-to-metal or high-temperature PTFE/graphite sealing.
Zero Leakage: Gland packing and optional O-rings or scraper rings ensure complete sealing.
Available Sizes & Pressure Ratings
Size Range: DN50–DN1200 (2″–48″)
Pressure Class: PN10 / ANSI 150 / custom available
Temperature Range: Up to 550°C depending on seat, body, and packing materials
Applications You Can Trust It In
Power Plants: Steam and thermal oil pipelines
Chemical Processing: Hot and corrosive chemical fluids
Pulp & Paper: Hot slurry and fibrous pipelines
Wastewater Treatment: High-temperature sludge control
Heavy Industry: High-temperature abrasive media handling
Food & Beverage: Hot process fluids (with suitable food-grade materials)
Optional Features for Enhanced Performance
Purge Ports: Flush sticky or hot media from the valve
Position Indicator: Remote open/closed feedback
Extended Stem or Gearbox: For deep or elevated installations
Dust Covers & Scrapers: Protect gate and sealing surfaces
High-Temperature Insulation Jackets: Reduce heat loss and improve operator safety
* We are not just providing simple quotes but experts in selection, calculation, and drawing.
High Temperature Knife Gate Valve – FAQ
A knife gate valve designed to handle hot fluids, steam, or high-temperature slurries, maintaining tight shut-off and reliable operation in thermal conditions.
Hot water, steam, thermal oils, high-temperature slurries, and corrosive hot chemicals.
The blade gate moves perpendicular to the flow, slicing through media while heat-resistant materials maintain sealing integrity.
Yes — high-temperature knife gate valves can be equipped with electric, pneumatic, or hydraulic actuators.
Routine inspection of gate, seat, and packing; minimal maintenance when using high-temperature materials.
Consider media temperature, type, valve size, pressure, and actuation. TOT provides expert guidance.
