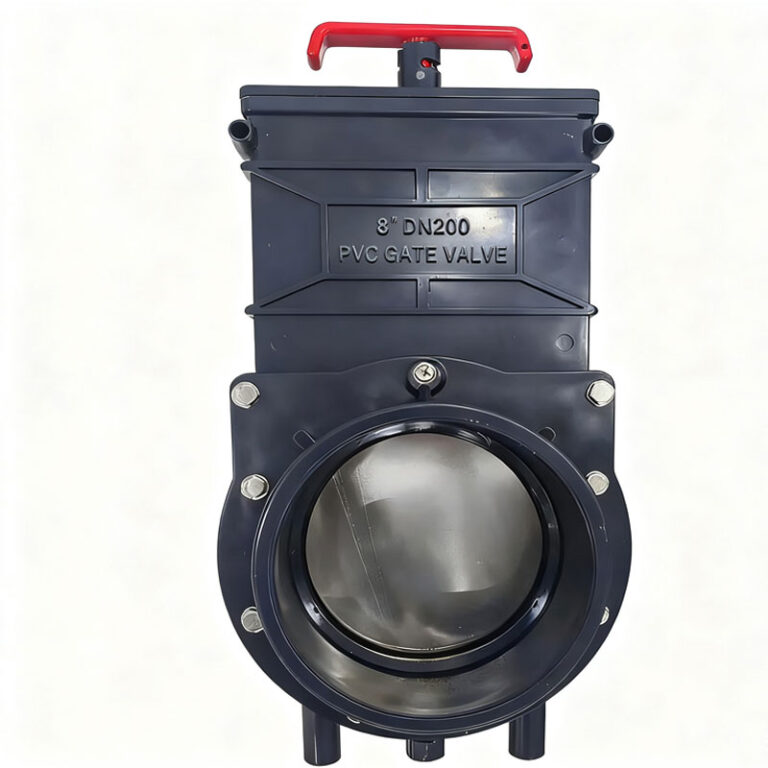

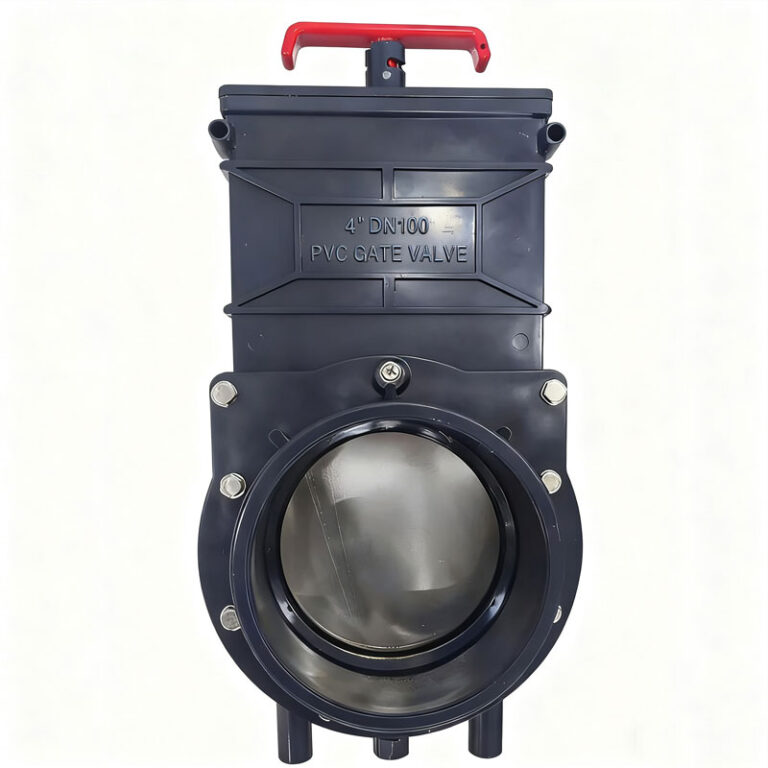

High-Performance PVC / Plastic Knife Gate Valve for Corrosive Media
When your fluid system handles corrosive, low-pressure, or clean media, you need valves that are lightweight, chemical-resistant, and reliable. Designed for water, wastewater, acids, and alkaline solutions, our PVC/plastic knife gate valves offer dependable isolation and long service life in non-abrasive applications.
TOT PVC knife gate valves feature a blade-shaped gate that moves perpendicular to the flow, designed to control liquid and semi-liquid media in chemical, water treatment, and light industrial systems.
PVC/plastic knife gate valves are characterized by a sharp, blade-like gate capable of slicing through media while providing tight shut-off without corrosion or chemical degradation.
Made from high-quality PVC, CPVC, or reinforced plastic materials, these valves provide excellent resistance to a wide range of chemicals, UV exposure, and scaling — ideal for harsh chemical or water-based applications.
Full Plastic Body & Gate: Not just the wetted parts — the entire valve is corrosion-proof and lightweight.
Customizable for Your Flow System: Face-to-face dimensions, flanges, and actuator options can be tailored to your project.
Factory-Tested Before Delivery: Every valve undergoes hydrostatic and seat testing to meet international standards.
ISO and CE Certified Manufacturing: Ensuring reliable quality and professional production standards.
Contact us today to improve your system efficiency and minimize operational issues.
Let’s Help You Specify the Right Knife Gate Valve
Be careful when choosing a new valve supplier, the disappointment of poor quality can last much longer than the joy of a low price!
PVC / Plastic Knife Gate Valve Data Sheet
| Parameter | Details |
|---|---|
| Body Material | PVC, CPVC, Reinforced Plastic |
| Gate Material | PVC, CPVC, PP, PVDF |
| Seat Options | EPDM, PTFE |
| Packing | PTFE, Graphite |
| Pressure Rating | PN6 / PN10 / ANSI 150 |
| Face-to-Face | Customizable |
| Connection | Wafer / Lug / Flanged |
| Actuation | Manual, Pneumatic, Electric |
Material Comparison: PVC / Plastic vs. Stainless Steel vs. Carbon Steel
| Feature | PVC / Plastic | Stainless Steel | Carbon Steel |
|---|---|---|---|
| Corrosion Resistance | Excellent (chemicals, water) | Very good | Poor without coating |
| Abrasion Resistance | Moderate (non-abrasive media) | Moderate | Moderate |
| Strength | Low-Medium | Medium | Medium |
| Cost | Low | Medium | Low |
| Weight | Very Light | Medium | Medium |
| Ideal Media | Water, acids, alkaline, non-abrasive liquids | Corrosive + semi-abrasive | Neutral + clean fluids |
| Common Applications | Chemical, water treatment, clean liquids | Food & beverage, wastewater | Water, oil, general purpose |
| Availability (Lead Time) | Fast (stock available) | Fast | Fast |
Kind Tips: If chemical resistance, light weight, and cost-effectiveness are your priorities, PVC/plastic knife gate valves provide the best value for low-pressure, non-abrasive applications.
“Choosing the right valve material is paramount to system longevity. If your primary concerns are handling strong acids, alkaline solutions, and high-purity water at low to moderate pressures (up to PN10), and you require a lightweight, cost-effective solution, the TOT PVC/Plastic Knife Gate Valve offers superior chemical performance and value over stainless or carbon steel alternatives.”
Why Choose PVC / Plastic Knife Gate Valves?
| Detail | Optimization Strategy |
| Reliable Shut-Off | Enhancement: Instead of just saying “Blade gate provides tight closure,” explain how the seat works: “The tight closure is achieved by the precision-machined PVC gate pressing against the resilient EPDM or PTFE perimeter seat, ensuring reliable, bubble-tight shut-off for clean liquids.” |
| Zero Leakage to Atmosphere | Enhancement: Elaborate on the Gland Packing: “We utilize high-grade, low-friction PTFE gland packing (or graphite for higher temperatures) around the stem to ensure zero fugitive emissions and tight environmental sealing. The packing is externally adjustable for long-term sealing performance.” |
| Corrosion-Free Construction | Enhancement: Be specific: “Our valves feature a non-metallic, full-body PVC construction (or CPVC for elevated temperatures) which eliminates galvanic corrosion risk and is highly resistant to aggressive media like Hydrochloric Acid (HCl) and Sodium Hydroxide (NaOH).” |
In environments where metals may corrode or chemical damage is a concern, PVC/plastic knife gate valves provide:
Chemical Resistance: Handles acids, alkalis, and other aggressive chemicals without corrosion.
Lightweight & Easy Installation: Simple to install and operate even in confined spaces.
Low Maintenance: Minimal maintenance required in non-abrasive applications.
Reliable Media Control: Blade-shaped gate cuts through soft media and ensures tight shut-off.
How Our PVC / Plastic Knife Gate Valves Are Built for Performance
Full Bore Flow: Unobstructed port ensures smooth media flow with minimal pressure drop.
Reliable Shut-Off: Blade gate provides tight closure, preventing leakage.
Corrosion-Free Construction: Entire valve made from chemical-resistant plastic, no rust or scaling.
Multiple Actuation Options:
Manual (Handwheel / Chainwheel)
Pneumatic Cylinder
Electric Actuator
Resilient Seat Options: EPDM or PTFE for bubble-tight sealing.
Zero Leakage to Atmosphere: Gland packing and optional O-rings ensure full sealing.
Available Sizes & Pressure Ratings
Size Range: DN50–DN600 (2″–24″)
Pressure Class: PN6 / PN10 / ANSI 150 / custom available
Temperature Range: PVC up to 60°C, CPVC up to 95°C
Applications You Can Trust It In
Water Treatment: Handles clean water, chemical dosing, and wastewater.
Chemical Processing: Acid, alkali, and salt solutions.
Food & Beverage (Non-Abrasive): CIP-compatible with EPDM/PTFE seats.
Irrigation & Pool Systems: Lightweight and corrosion-free.
Light Industrial Applications: Controlling non-abrasive slurries and fluids.
Optional Features for Enhanced Performance
Purge Ports: Flush sticky or viscous media
Position Indicator: Remote operation feedback
Extended Stem / Gearbox: For deep installations
Dust Covers & Scrapers: Keep gate and sealing surfaces clean
* We are not just providing simple quotes but experts in selection, calculation, and drawing.
FAQ-PVC / Plastic Knife Gate Valve
A valve made of chemical-resistant plastic, designed for low-pressure liquids, acids, or alkaline solutions. It features a blade-shaped gate for reliable shut-off.
Our PVC / Plastic Knife Gate Valves are specifically engineered for non-abrasive, chemically active media. They safely handle:
Strong Acids and Alkalis: Hydrochloric Acid, Sodium Hydroxide (Caustic), Sulfuric Acid.
Water and Wastewater: Treated water, industrial drainage, and light sewage.
Salts and Brines: High-concentration salt solutions and corrosive brines.
Slurries: Only non-abrasive, soft solids (e.g., polymer gels, fine suspensions).
The valve operates using a blade-shaped gate that moves perpendicularly into the flow path. When closing, the sharp gate slices through the media and presses firmly against the surrounding elastomer seat (EPDM or PTFE), providing a secure, tight seal. Its smooth actuation ensures minimal friction and maintenance.
Yes, the PVC Knife Gate Valve is highly versatile for automation. We offer three main actuation options based on your system needs:
Manual: Handwheel or Chainwheel (standard).
Pneumatic: Air cylinder operation for quick, remote ON/OFF cycling.
Electric: Motorized actuators for precision control and integration into SCADA systems.
Selection depends on three critical factors:
Chemical Compatibility: Choose PVC (up to 60°C) or CPVC(up to 95°C) based on media temperature and chemical concentration.
Pressure Rating: Match the valve to your system's pressure (PN6 or PN10). Our PVC valves are ideal for low-pressure systems.
Connection Type: Select the connection (Wafer, Lug, or Flanged) that mates perfectly with your existing pipe system.
For non-abrasive, clean media, maintenance is minimal. The key task is periodic inspection of the gland packing to ensure zero atmospheric leakage. The packing can be easily tightened if minor weeping occurs, prolonging the service life indefinitely.
