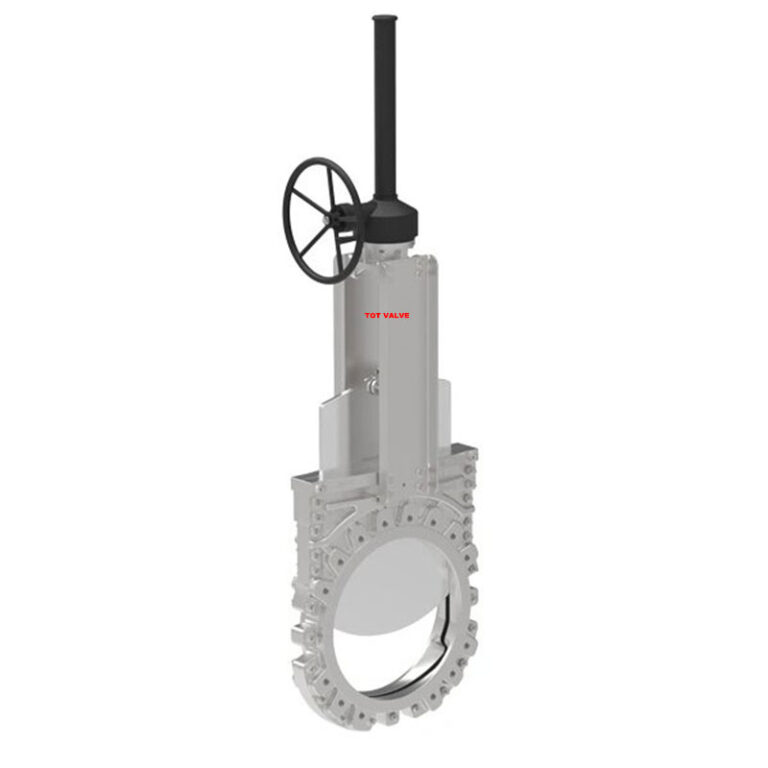

Rising Stem Knife Gate Valve
The Rising Stem Knife Gate Valve is engineered for precise flow control and reliable shutoff in slurries, viscous fluids, and abrasive media. Unlike standard knife gate valves, the rising stem design allows for visual indication of valve position, easier operation, and reduced wear on the gate and seats. This makes it ideal for industries such as mining, pulp & paper, wastewater treatment, and chemical processing.
Let’s Help You Specify the Right Knife Gate Valve
Be careful when choosing a new valve supplier, the disappointment of poor quality can last much longer than the joy of a low price!
Technical Specifications
| Specification | Details |
|---|---|
| Valve Type | Rising Stem Knife Gate Valve |
| Sizes | 2″ – 48″ (custom sizes available) |
| Pressure Class | PN10, PN16, ANSI 150 – 300 |
| Body Materials | Cast Iron, Carbon Steel, Stainless Steel, Duplex Steel |
| Seat Materials | Resilient, PTFE, Metal |
| Actuation | Manual, Gear, Pneumatic, Hydraulic, Electric |
| Operation | Fully Open / Fully Closed with visual position indication |
| Applications | Slurry, Abrasive Media, Pulp & Paper, Mining, Wastewater |
Key Features
Rising Stem Design: Provides a clear visual indication of gate position and smooth operation.
Durable Gate and Body: Reinforced gate slices through solids and abrasive media efficiently.
Multiple Seat Options: Resilient, PTFE, or metal seats to suit different service conditions.
Versatile Actuation: Manual, gear-operated, pneumatic, hydraulic, or electric options available.
Corrosion & Abrasion Resistant: Body and gate materials include carbon steel, stainless steel, duplex alloys, or custom alloys.
Bi-Directional Sealing: Ensures tight shutoff in both flow directions.
Applications
Mining & Mineral Processing: Handles abrasive slurries with minimal wear.
Pulp & Paper Industry: Suitable for pulp and stock pipelines.
Wastewater Treatment: Effective in sludge, grit, and viscous waste pipelines.
Chemical Processing: Compatible with corrosive or viscous fluids.
Benefits
Visual Position Indication: Rising stem shows gate position for safer and easier operation.
Extended Service Life: Reinforced gate and body reduce wear in abrasive media.
Reliable Shutoff: Tight sealing for both flow directions.
Flexible Installation: Compatible with wafer, lug, or flanged systems.
Reduced Maintenance: Optional replaceable seat designs allow in-line servicing.
Ordering & Customization
We provide custom configurations for valve size, pressure rating, body and seat materials, and actuation methods to meet your project requirements.
* We are not just providing simple quotes but experts in selection, calculation, and drawing.
Rising Stem Knife Gate Valve – FAQ
A rising stem knife gate valve features a stem that moves up and down as the valve opens or closes, providing a visual indication of the gate position. It is designed for reliable flow control in slurry, viscous, and abrasive media applications.
Unlike standard valves, the rising stem design allows operators to see the valve position, reducing the risk of accidental operation and making maintenance easier. It also reduces wear on the gate and seat during operation.
Typical sizes range from 2" to 48", with pressure classes from PN10, PN16, up to ANSI 150–300. Custom sizes and pressure ratings are available upon request.
Common body materials include cast iron, carbon steel, stainless steel, and duplex alloys. Seat options include resilient rubber, PTFE, or metal, depending on application requirements.
Valves can be operated manually, with gear, or through pneumatic, hydraulic, or electric actuators for flexible integration.
Yes. The reinforced gate, durable body, and rising stem design make these valves ideal for abrasive, viscous, and solid-laden media in industries such as mining, pulp & paper, and wastewater treatment.
Provide your project details—size, pressure rating, material, seat type, and actuator preference—and our sales team will provide a tailored quotation, usually within 24 hours. Bulk orders or large projects may qualify for discounts.
