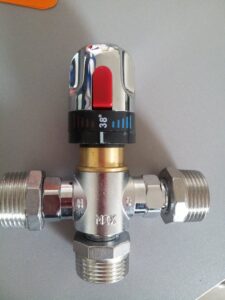

3-Way Thermostatic Mixing Valve (High Flow)

This 3-Way Thermostatic Mixing Valve ( $\text{TMV}$ ) is a high-precision, high-flow temperature control device designed to provide a stable and safe water temperature automatically. Its advanced sensing mechanism makes it ideal for large-volume, central hot water supply systems, group showers, or industrial applications.

💡 Working Principle

The valve achieves its constant output temperature using a highly sensitive thermal element located at the mixed water outlet:

Sensing and Actuation: A thermosensitive component is installed at the mixed water outlet of the valve body.
Automatic Modulation: Utilizing the characteristics of the sensing element, it automatically pushes the internal spool to move, thereby simultaneously blocking or opening the cold and hot water inlets.
Constant Output: Once a temperature is set via the control knob, the proportion of cold and hot water entering the outlet automatically changes to instantaneously compensate for any fluctuations in the inlet temperature or pressure of the supply lines. This ensures the output temperature remains constantly stable at the set value.
Adjustable Range: The temperature adjustment knob allows for setting the temperature anywhere between $35^\circ\text{C}$ and $65^\circ\text{C}$ , and the $\text{TMV}$ automatically maintains this set temperature.

📋 Key Technical Parameters

Parameter	Detail / Rating
Mixing Temperature Range	$\mathbf{35^\circ\text{C} - 65^\circ\text{C}}$
Maximum Flow Rate	$\mathbf{6.5}\,\mathbf{T}/\mathbf{h}$ (6.5 Tons/hour)
Working Pressure Range	$\text{0.05} - \text{1}\,\text{MPa}$
Ideal Working Pressure	$\text{0.1} - \text{0.3}\,\text{MPa}$
Hot Water Temperature Range	50°C – 80°C
Maximum Hot Water Temp	$\le 85^\circ\text{C}$
Materials	All-Copper Movement/Core, Stainless Steel Casing
Inlet/Outlet Nominal Size	$\text{DN}15\,\text{mm} - \text{DN}80\,\text{mm}$ ( $\text{1/2}''$ to $\text{3}''$ nominal)

⭐ Product Application Advantages

High-Flow Capacity: The $\text{6.5}\,\text{T}/\text{h}$ flow rate makes it suitable for applications requiring large volumes of tempered water, such as multiple shower heads or industrial washdowns.
Safety: Ensures a stable temperature output, effectively preventing scalding risks.
Durable Construction: The combination of a full-copper internal core and a stainless steel outer casing provides superior resistance to corrosion and ensures long-term reliability.
Wide Compatibility: The $\text{DN}15$ to $\text{DN}80$ size range makes it adaptable for both light commercial and heavy industrial plumbing.
