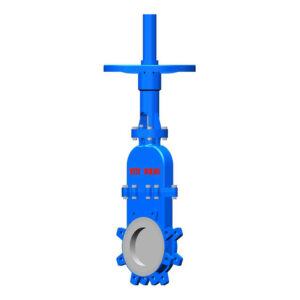

Lug Bonneted Manual Handwheel Round Port Knife Gate Valve
The Lug Bonneted Manual Handwheel Round Port Knife Gate Valve is designed for reliable shut-off and easy maintenance in demanding industrial applications.
It combines a lug-type body for flexible pipeline installation, a bonneted stem housing for improved sealing performance, and a round port design that ensures full flow and minimal pressure loss.
Ideal for slurry, wastewater, pulp & paper, and chemical processing, this valve provides long-lasting operation even under abrasive or corrosive conditions.
Key Features
Lug Type Body:
Threaded lugs allow easy installation and independent removal from either side of the pipeline—ideal for confined or fixed piping systems.Bonneted Construction:
Bolted bonnet protects the stem and packing chamber, minimizing leakage and extending the packing service life.Round Port Design:
Standard circular port matches conventional piping, ensuring smooth, unrestricted flow and reduced turbulence.Manual Handwheel Operation:
Simple, cost-effective control for on/off isolation. Optional pneumatic, electric, or hydraulic actuation is available for automation needs.Full-Bore Flow Path:
The knife gate completely withdraws when open, preventing media accumulation and ensuring low-pressure drop.Heavy-Duty Materials:
Available in ductile iron, carbon steel, or stainless steel to meet various process and environmental requirements.
Technical Specifications
| Item | Description |
|---|---|
| Size Range | DN50 – DN1200 (2” – 48”) |
| Pressure Rating | PN10 / PN16 (up to 150 PSI) |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel (CF8 / CF8M) |
| Gate Material | Stainless Steel 304 / 316 |
| Seat Material | EPDM, NBR, PTFE, or Metal |
| Port Type | Round Port |
| Bonnet Type | Bolted Bonnet with Packing Gland |
| Connection Type | Lug Type (with threaded holes) |
| Operation | Manual Handwheel (Optional: Pneumatic / Electric / Hydraulic) |
| Working Temperature | -20°C to +200°C (depending on material) |
Applications
Mining and Mineral Processing
Pulp and Paper Industry
Wastewater Treatment Systems
Power Plants (Ash and Slurry Handling)
Food, Chemical, and Pharmaceutical Processing
Advantages
Reliable sealing under high-solid and abrasive conditions
Easy inline maintenance and disassembly from either side
Round port ensures full bore flow and reduced energy loss
Bonneted stem protection for long-term durability
Manual handwheel operation for precise, straightforward control
Available Options
Rising or Non-Rising Stem
Resilient or Metal Seat
Uni-Directional or Bi-Directional Design
Various actuator types (Manual / Pneumatic / Electric / Hydraulic)
Contact Us
Looking for a Lug Bonneted Manual Handwheel Round Port Knife Gate Valve that combines reliability, performance, and affordability?
TOT Valve supplies a complete range of industrial knife gate valves designed for harsh environments and demanding flow control applications.
📧 Contact us today for detailed specifications, pricing, or customized configurations.
