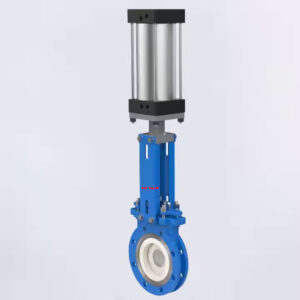

Pneumatic Actuation Rising Stem Flanged Round Port Heavy Slurry Knife Gate Valve

This high-performance knife gate valve is the definitive choice for automated, high-cycle isolation duties in the toughest environments. It is engineered specifically to handle heavy, high-concentration slurries, abrasive media, and fibrous materials that often challenge conventional valves.

Equipped with a robust Pneumatic Cylinder Actuator, it provides the necessary speed and power for demanding industrial processes. The Flanged connection ensures maximum structural integrity and a secure, high-pressure seal, while the Rising Stem offers clear visual feedback and easy automation integration.

Key Features & Automated Reliability

Feature Category	Technical Detail	Core Operational Benefit
Automation & Speed	Pneumatic Cylinder Actuator	Provides rapid, reliable automated on/off control, significantly increasing cycle speed and eliminating the need for manual labor in frequent-use applications.
Structural Integrity	Flanged Connection	Offers the highest connection strength and rigidity, ideal for large sizes, high pressure ratings, or systems subjected to vibration and stress.
Media Handling	Heavy Slurry Rated	Built with robust guides, thick resilient seats (or specialized materials like ceramic/UHMWPE), and a reinforced gate to effectively cut through dense, settled media.
Safety & Control	Rising Stem Design	The moving stem provides an unambiguous, immediate visual position indicator, and facilitates the straightforward mounting of limit switches for remote control feedback.
Flow Efficiency	Round Port Geometry	Ensures a full, unobstructed bore when open, minimizing fluid turbulence, head loss, and localized abrasive wear.
Non-Clogging	Bonnetless Design (Standard)	The simplified top structure (common in slurry KGV design) prevents solids from accumulating above the gate, ensuring consistent, jam-free cycling.

Technical Specifications (Standard Pneumatic Model)

Parameter	Specification Range
Actuation Method	Pneumatic Cylinder (Standard Double-Acting)
Connection Type	Flanged (ANSI 150/300 or PN10/16/25)
Service Focus	Heavy Slurry, High Solids Content
Stem Design	Rising Stem
Port / Flow	Round Port / Full Bore
Pressure Rating	Class 150 / PN16 (Common)
Body Material Options	Cast Steel (WCB), Stainless Steel (CF8M), or Duplex
Gate Material	Stainless Steel (SS316) with optional Hard Chrome Plating or Ceramic Coating.
Seating Material	High-density Resilient Seats (e.g., Urethane) or specialized Ceramic/Metal seats for extreme abrasion.

Target Industry Applications

This automated valve is essential for critical, high-volume processes involving severe media:

Mining & Mineral Processing: Automated control of concentrate slurry lines, high-pressure tailing transport, and filter press feed lines.
Power Generation: High-cycle isolation of ash slurry, flue gas desulfurization (FGD) media, and lime slurry systems.
Wastewater Treatment: Automated primary isolation of raw sewage inflow and dense sludge dewatering systems.

Complete Automation Package: The pneumatic cylinder is supplied with ISO mounting standards, ready for seamless integration. We offer a full suite of control accessories including Solenoid Valves, Positioners, and Limit Switch Boxes for reliable remote operation and feedback to your DCS/PLC.
