Pneumatic Double Disc Knife Gate Valve: Ceramic-Lined for Superior Wear Resistance

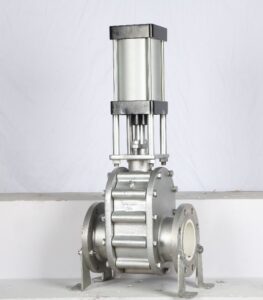

The TOT Valve Pneumatic Double Disc Knife Gate Valve is a heavy-duty, wear-resistant solution designed to provide reliable on/off control in pipelines transporting highly abrasive or corrosive media. By utilizing advanced ceramic lining and a unique double-disc design, this valve offers exceptional longevity and sealing integrity where conventional metal valves fail quickly due to erosion.
Key Features and Advantages
| Feature | Design Detail | Benefit for Your Operation |
| Extreme Wear Resistance | Valve seat and valve plate made of Composite Engineering Ceramics (Hard Alloy Ceramic Lined). | Dramatically extends service life in abrasive applications (e.g., fly ash, slag, mining slurries), reducing replacement frequency and maintenance costs. |
| Superior Sealing | Double Disc configuration with precise ceramic seating surfaces. | Provides a robust, tight shut-off, minimizing leakage and ensuring process safety and efficiency. |
| Reliable Actuation | Equipped with a Pneumatic actuator. | Allows for fast, dependable remote operation and integration into automated control systems. |
| High-Performance Packing | Flexible Graphite packing material. | Ensures a reliable seal against external leakage, especially under moderate pressure and temperature variations. |
| Versatile Sizing | Port sizes ranging from DN50 to DN350mm. | Suitable for a wide range of industrial pipeline diameters and flow rates. |
Technical Specifications
| Parameter | Specification |
| Valve Type | Pneumatic Double Disc Knife Gate Valve |
| Port Size Range | DN50 – DN350mm |
| Power/Actuation | Pneumatic |
| Nominal Pressure | 1.0MPA |
| Sealing Surface (Seat) | Composite Engineering Ceramics (Wear-Resistant Hard Alloy Ceramic Lined) |
| Closure Component (Plate) | Composite Engineering Ceramics |
| Packing Material | Flexible Graphite |
| Typical Media | Ash, Slurries, Corrosive Liquids, Water Media |
Applications
This specialized ceramic-lined valve is ideally suited for severe-service flow isolation in industries including:
- Power Plants: Fly ash and bottom ash conveying systems.
- Mining & Mineral Processing: Slurry lines and tailings management.
- Wastewater Treatment: Abrasive sludge and grit handling.
- Chemical Processing: Transport of corrosive or highly particulate media.
