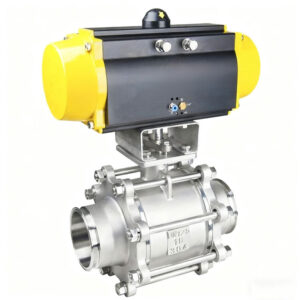

Pneumatic Operated High Vacuum Ball Valve
The Pneumatic Operated High Vacuum Ball Valve is specifically designed for systems where the working pressure is below standard atmospheric pressure, creating a controlled vacuum environment. This straight-through, spherical-seal valve is ideal for isolating or connecting sections of a vacuum system.
Features & Vacuum Performance
- Vacuum Application Range: Suitable for vacuum levels ranging from 0.6*10 ^6 to 1.3*10^-4Pa
- Versatile Operation: The spherical sealing design allows the valve to be reliably used in both high vacuum and low pressure (non-vacuum) states.
- Zero Leakage Sealing: Features a tongue-and-groove fit seat design which prevents deformation and ensures zero leakage under vacuum conditions.
- Convenient Maintenance: Designed with a double-flat, precision-meshing structure to prevent corrosion and facilitate easy assembly and disassembly.
- Reliable and Durable: Conforms to the ISO5211 standard high platform design for easy actuator mounting and a long service life.
- Optimized Performance: Provides bidirectional sealing and bidirectional pressure resistance with a low operating torque and excellent flow characteristics (high flow rate).
- Installation Flexibility: Can be installed in any position to connect or shut off the flow of media in vacuum system pipelines.
Technical Specifications
| Parameter | Specification |
| Nominal Diameter (DN) | DN15 to DN100mm (Other sizes available upon request) |
| Nominal Pressure / Vacuum Range | 1.3*10-7Pa to 6*105Pa (Other standards available upon request) |
| Body Material | Stainless Steel 304 (P), Stainless Steel 316 (R) |
| Sealing Material Options | PTFE (Polytetrafluoroethylene), NBR (Nitrile Butadiene Rubber) (X1), FPM (Fluoroelastomer) (X4) |
| Media Temperature | -20~150℃ |
| Connection Type | Lap Joint Flange, Welded Flange, Quick-Install (Tri-Clamp), Threaded |
| Actuator Action | Double-Acting, Single-Acting Normally Closed, Single-Acting Normally Open |
Applications
This valve is widely used in systems where the working pressure is below standard atmospheric pressure and is essential for maintaining pressure in vacuum equipment. Typical industries include:
- Vacuum Technology
- Dairy and Beverage Production
- Winery and Alcohol Industry
- Bio-engineering
- Food Processing and Pharmaceuticals
- Cosmetics and Chemical Processing
For precise, leak-free isolation in your high-vacuum or low-pressure processes, choose the reliability of our Pneumatic Vacuum Ball Valve.
