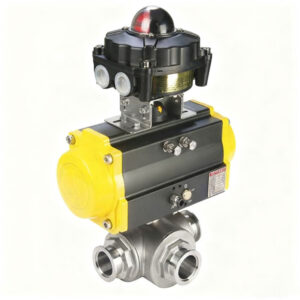

Pneumatic Operated Sanitary Three-Way Ball Valve (Thread, Tri-Clamp, and KF Options)
This product page describes the specialized Pneumatic Operated Sanitary Three-Way Ball Valve, engineered specifically to meet the stringent requirements of the Food, Pharmaceutical, and Bioengineering industries. This valve allows for automated, reliable flow diversion, mixing, and distribution while adhering to the highest standards of hygiene and cleanability.
Sanitary & Operational Excellence
- Sanitary Compliance: Manufactured from Stainless Steel SUS304 and 316L, strictly adhering to FDA requirements during production. It is designed and manufactured according to GMP requirements using computer 3D design.
- Hygienic Flow Path: Features a smooth, seamless, and self-draining flow channel, making it highly suitable for Clean-In-Place (CIP) and steam sterilization processes.
- Flow Versatility (L-Port & T-Port):
- L-Port: Used for switching media flow direction, connecting two perpendicular channels.
- T-Port (Mixing/Diverting): Provides flexibility to connect all three channels, or close one channel while linking the other two, allowing for complex fluid merging or splitting.
- Sealing Structure: Typically employs a two-seat structure, with a specialized four-seat sealing structure available upon request. The four-seat design offers aesthetic appeal, compact structure, and the ultimate flexibility for flow management.
- Performance & Safety: Features full-bore design for rapid response and zero leakage. Includes fire-safe and anti-static structures and is manufactured via silica sol precision casting.
- Durability & Longevity: Guaranteed by bidirectional sealing, bidirectional pressure resistance, automatic compensation, and a self-cleaning function for extended service life.
- Standardized Integration: Conforms to the ISO5211 standard high platform design for easy and reliable pneumatic actuator mounting.
Technical Specifications
| Parameter | Specification |
| Nominal Diameter (DN) | DN15 to DN800mm |
| Nominal Pressure | 1.6-4.0Mpa (Other pressure standards available upon request) |
| Body Material | Stainless Steel 304 (P), Stainless Steel 316L (R) |
| Sealing Material | PTFE (Polytetrafluoroethylene), PPL (Para-poly-phenylene) |
| Media Temperature | -20~250℃ |
| Connection Type | Internal Thread (Female Thread), Tri-Clamp (Clamp), KF Flange |
| Thread Forms | BSPT, G-Thread, NPT (For threaded versions) |
| Actuator Action | Double-Acting, Single-Acting Normally Closed, Single-Acting Normally Open |
Applications
This valve is widely used in sensitive and hygienic processes, including:
- Food and Beverage Production
- Wineries and Brewing
- Dairy and Milk Products
- Fine Chemicals
- Pharmaceuticals and Medicine
- Bioengineering
Ensure the highest level of hygiene and automated control in your critical process lines. Contact us to select the precise Pneumatic Sanitary Ball Valve (Thread, Tri-Clamp, or KF) to meet your GMP requirements.
