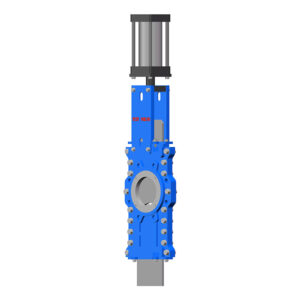

Pneumatic Through-Conduit Knife Gate Valve
The Pneumatic Through-Conduit Knife Gate Valve is a high-performance valve solution designed for automatic and remote-controlled operation in demanding industries. Its through-conduit design ensures that when the gate is fully open, the flow path is completely unobstructed, minimizing pressure drop, preventing media accumulation, and protecting the sealing surfaces.
Equipped with a pneumatic actuator, this valve offers fast, reliable, and low-maintenance actuation, making it an ideal choice for large-diameter pipelines, abrasive slurries, and process automation systems.
Key Features
Through-Conduit Structure – Ensures full-bore flow, reduces turbulence, and extends seat life.
Pneumatic Actuation – Enables quick, efficient, and remote-controlled valve operation.
Fail-Safe Options – Configurable as fail-open, fail-close, or double-acting actuator systems.
Durable Design – Built to withstand abrasive, corrosive, and high-solid-content media.
Sealing Flexibility – Available in uni-directional and bi-directional sealing designs.
Automation Ready – Compatible with solenoid valves, limit switches, and positioners for process control.
Technical Specifications
Design Type: Through-Conduit Knife Gate Valve
Operation: Pneumatic actuator (single-acting or double-acting)
Size Range: DN150 – DN2000 (customizable)
Connection Types: Wafer, Lug, or Flanged
Body Materials: Cast iron, ductile iron, carbon steel, stainless steel (304/316), duplex steel
Seat Options: Resilient seat (EPDM, NBR, Viton) or metal seated for high temperature/abrasive service
Pressure Ratings: Standard industrial pressure classes; customized on request
Accessories: Solenoid valves, air filter regulators, limit switches, and position indicators
Typical Applications
The Pneumatic Through-Conduit Knife Gate Valve is widely used in industries requiring automated flow control of slurries, solids, and viscous media:
Mining & Mineral Processing – Tailings, concentrate pipelines, and abrasive slurry handling.
Wastewater Treatment – Sludge, grit removal, and solid-laden effluents.
Power Plants – Flue gas desulfurization (FGD), ash slurry, and cooling water systems.
Pulp & Paper – High-consistency pulp, fiber suspensions, and recycled stock.
Chemical & Process Industry – Corrosive or high-viscosity media requiring automation.
Why Choose TOT Valve?
At TOT Valve, we provide reliable and cost-effective knife gate valve solutions that meet global industrial standards. The Pneumatic Through-Conduit Knife Gate Valve is engineered for precision control, long service life, and seamless integration into automated systems, making it the preferred choice for modern process industries.
📩 Contact us today to discuss your project needs, request technical datasheets, or receive a tailored quotation.
