Rising Stem Solid Wedge Gate Valve

The Rising Stem Solid Wedge Gate Valve is a reliable, durable isolation valve primarily used to stop or allow the flow of medium. The defining feature of the “rising stem” design is that the valve stem rises and lowers with the gate, providing a clear visual indication of the valve’s position (open or closed).

This Cast Iron valve is widely used across industrial sectors for on/off applications involving steam, water, and oil.

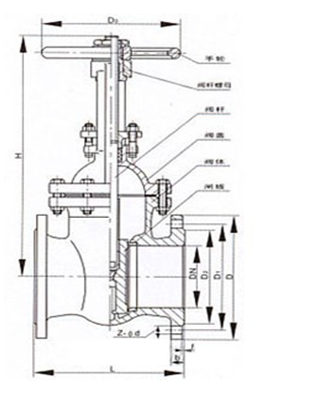

Rising Stem Solid Wedge Gate Valve drawing

⚙️ General Application

Parameter	Detail
Main Function	On/Off Isolation
Nominal Pressure ( $\text{PN}$ )	$\le 1.0\,\text{MPa}$ (Low to Medium Pressure)
Applicable Media	Steam, Water, Oil Products
Primary Industries	Petroleum, Chemical, Pharmaceutical, Electric Power, and General Industry

⭐ Structural Features

Compact Structure & Low Resistance:
- Features a compact, reasonable design, resulting in good valve rigidity.
- The flow passage is unobstructed, leading to low media resistance .
Durable Sealing Surfaces:
- Sealing surfaces are constructed from Stainless Steel and Hard Alloy materials, ensuring a long service life.
Wedge Variety:
- The wedge structure can be manufactured in various forms, including:
  - Flexible Wedge Single Gate
  - Rigid Wedge Single Gate
  - Double Gate
Reliable Sealing:
- Uses flexible Graphite Packing for the stem seal, ensuring reliable sealing, easy, and flexible operation.
Flexible Actuation:
- Can be equipped with various driving methods:
  - Manual
  - Pneumatic
  - Electric
  - Gear Transmission

🔑 Key Advantage: Visual Confirmation

The Rising Stem design provides a critical operational advantage: the height of the stem directly indicates the open/closed status of the valve, allowing for easy visual confirmation from a distance without needing to check the handwheel position.

This valve is a versatile, low-pressure option for isolation in process and utility lines.
