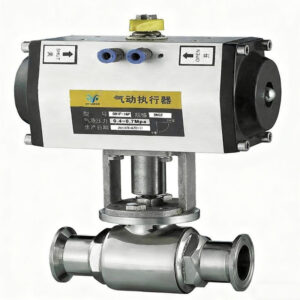

Sanitary Ball Valve (Quick-Connect)

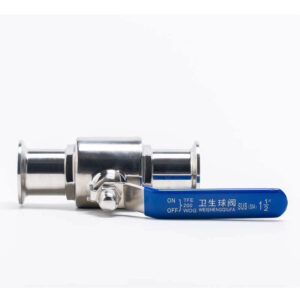

The Sanitary Ball Valve (also known as a Sanitary Quick-Loading Ball Valve or Food Ball Valve) is a crucial component in hygiene-critical industries. It is designed to provide quick, reliable fluid shut-off while ensuring all product-contact surfaces are easily accessible for cleaning, preventing the harbor of bacteria and contaminants.

📋 Product Specifications

Parameter	Detail
Product Names	Stainless Steel Quick-Loading Ball Valve, Sanitary Ball Valve, Food Ball Valve
Material	Stainless Steel 304, 316L
Specification Range	DN15 – DN200 ( $\text{15}\,\text{mm}$ to $\text{219}\,\text{mm}$ pipe $\text{OD}$ )
Sealing Material	$\text{PTFE}$ (Polytetrafluoroethylene)
Common Sanitary Pipe Sizes	$\text{19, 25, 32, 38, 51, 63, 76, 89, 102}$ ( $\text{mm}$ outer diameter)

⭐ Connection and Advantages

The key distinguishing feature is the Fast-Loading Connection Mode (Quick-Connect):

Mechanism: The valve ports feature quick-loading chucks (Tri-Clamp style). The connection is made by placing a silicone sealing gasket between the two chucks and securing them with a clamp.
Primary Advantages:
- Fast and Convenient Connection: Dramatically reduces assembly and disassembly time.
- Easy to Disassemble and Wash (CIP/SIP friendly): The quick-clamp system allows the valve to be removed from the line for inspection or manual cleaning quickly, essential for $\text{CIP}$ (Clean-in-Place) and $\text{SIP}$ (Sterilize-in-Place) protocols.
- Hygiene: The smooth internal surfaces and design minimize dead legs and crevices where microbial growth could occur.

🏭 Scope of Application

Sanitary ball valves are used in fluid pipelines primarily to cut off and regulate the flow in environments where hygiene is paramount:

Food and Beverage (Dairy, Beer, Juice)
Pharmaceutical and Bioprocessing (Pure Water, $\text{WFI}$ )
Water Treatment
Cosmetics and Fine Chemicals

The choice between $\text{304}$ and $\text{316L}$ stainless steel depends on the medium’s corrosivity, with $\text{316L}$ (low carbon, molybdenum added) offering superior resistance against chlorides and harsh chemicals, making it the standard choice for pharmaceutical and aggressive food applications.
