Stainless Steel Flanged Butterfly Valve
The Stainless Steel Flanged Butterfly Valve is a highly versatile and corrosion-resistant isolation and control valve suitable for a broad range of general industrial, utility, and municipal applications. Its Stainless Steel construction ensures superior resistance to water, weak acids, weak alkalis, and various chemicals.
⚙️ General Specifications
| Parameter | Detail |
| Nominal Diameter (DN) | DN50 – DN1200 (≈ 2” – 48”) |
| Nominal Pressure (PN) | PN10/PN16/Class150LB |
| Applicable Temperature | -20°C to 120°C |
| Applicable Media | Water, Weak Acids & Alkalies, Gas, Oil Products |
| Valve Body Material | Stainless Steel 304 (Standard) |
| Connection Type | Flanged |
✨ Key Product Advantages
- Material Integrity: All Stainless Steel components (304/316, etc.) are guaranteed to meet material specifications (chemical analysis assurance) and material certificates are available upon request.
- Precision Manufacturing: Both the valve body and internal parts are processed using CNC precision machinery, ensuring high accuracy and smooth operation.
- Reliable Sealing: The rubber valve seat is made of compliant EPDM (Ethylene Propylene Diene Monomer) rubber, providing stable and reliable elasticity and tensile strength. Guaranteed to achieve zero leakage after ≥ 10,000 open/close cycles.
- Corrosion Resistant Fasteners: All standard fasteners (bolts, nuts) are made of Stainless Steel for enhanced corrosion resistance.
- Dual Pressure Testing: Every valve undergoes strict national standard dual pressure testing (shell and seal tests) before leaving the factory to guarantee performance and safety.
📋 Specific Model Configuration

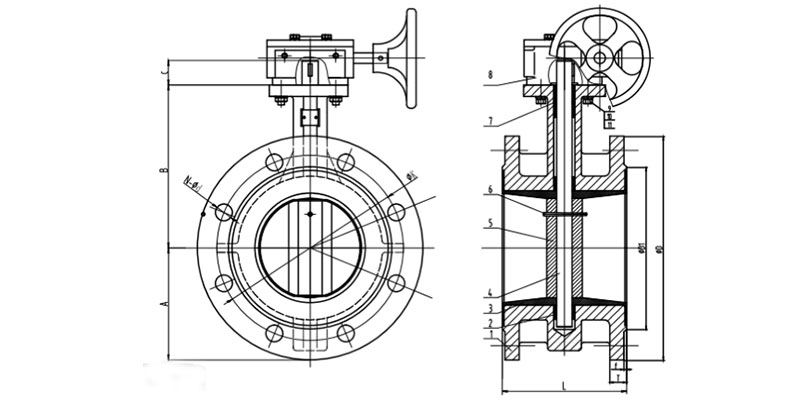

| Component | Standard Material |
| Body | Stainless Steel (e.g., 304 or 316) |
| Disc | Stainless Steel 304 |
| Shaft (Stem) | Stainless Steel 420 |
| Seat | EPDM Rubber |
| Pressure Rating | PN1.6MPa |
| Actuation Options | Worm Gear (Manual), Electric, Pneumatic |
🏭 Application Fields
This valve is widely utilized in sectors requiring corrosion resistance, sanitation, or stable operation in non-critical corrosive media:
- Municipal Construction and Waterworks
- Water Treatment and Supply/Drainage Systems
- Hydraulic Engineering
- Electric Power Plants
- General Industrial Pipelines
