In pump and fluid transfer systems, a foot valve is a critical component installed at the bottom of the suction pipe. Its primary purpose is to prevent backflow, maintain prime, and protect pumping equipment, making it widely used in water supply, agricultural irrigation, industrial processes, and municipal engineering.
Often described as the first line of defense in a pumping system, the performance of a foot valve directly affects pump reliability, energy efficiency, and service life.

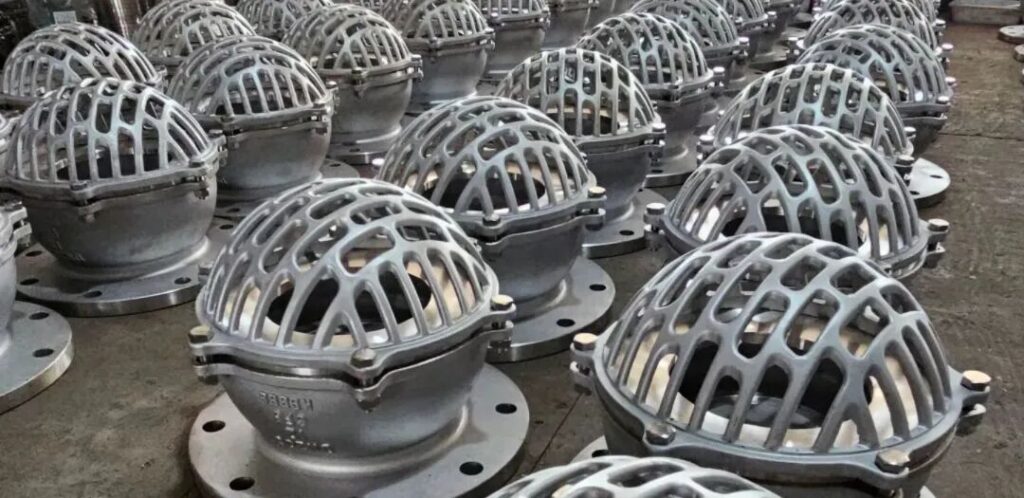

What Is a Foot Valve?
A foot valve is a type of check valve (non-return valve) installed at the lowest point of a pump’s suction line, typically submerged in the fluid source such as a tank, well, or reservoir.
Unlike standard check valves, foot valves usually include an integrated strainer, allowing them to:
Prevent reverse flow
Keep the suction line filled with liquid
Filter debris before it enters the pump
The Three Core Functions of a Foot Valve
A foot valve performs three essential roles that work together to ensure stable and efficient fluid transfer.
1. Preventing Backflow: A One-Way Barrier
The most fundamental function of a foot valve is to stop liquid from flowing backward when the pump shuts off.
How it works:
When the pump starts, suction pressure lifts the valve disc or poppet, allowing fluid to enter the suction line.
When the pump stops, gravity and reverse pressure force the valve closed.
This creates a tight seal that blocks fluid from draining back into the source.

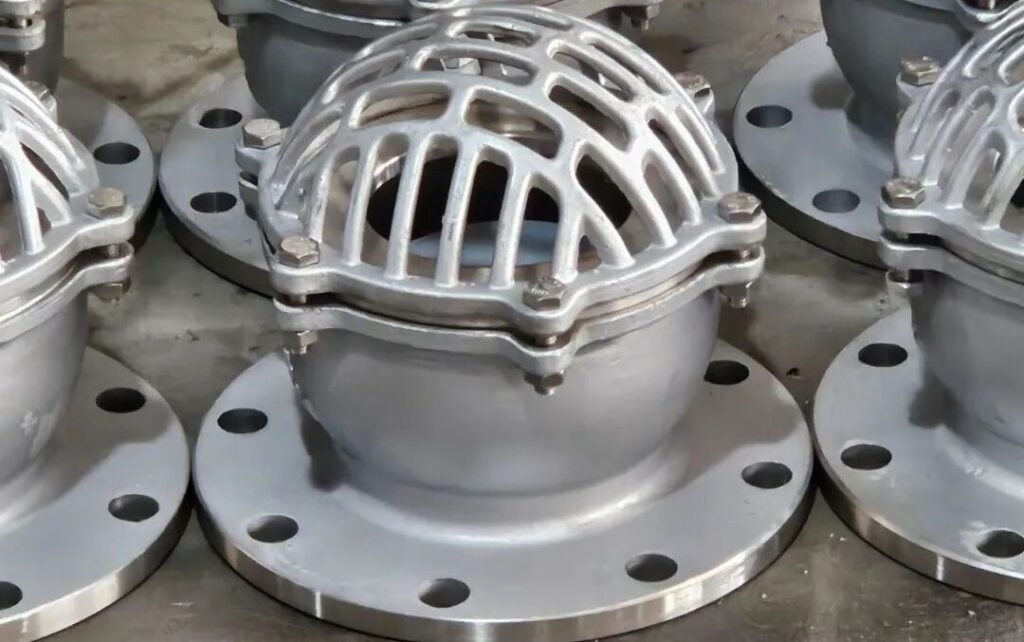

Compared to standard check valves, foot valves require higher sealing reliability, as they remain submerged and operate continuously under varying pressure conditions.
If backflow prevention fails:
The suction line empties
System pressure is lost
The pump risks dry running during the next start-up
2. Maintaining Prime: Simplifying Pump Start-Up
Many centrifugal and non-self-priming pumps cannot operate with air in the suction line. Without liquid, the pump cannot generate sufficient suction and may run dry.
A foot valve solves this problem by:
Trapping liquid in the suction line after the first priming
Keeping the line permanently full between pump cycles
Key benefits:
No need for repeated manual priming
Faster pump restart
Reduced downtime in frequently cycled systems
This is especially valuable in agricultural irrigation, where pumps start and stop frequently based on water demand.
3. Filtering Debris: The First Protective Screen

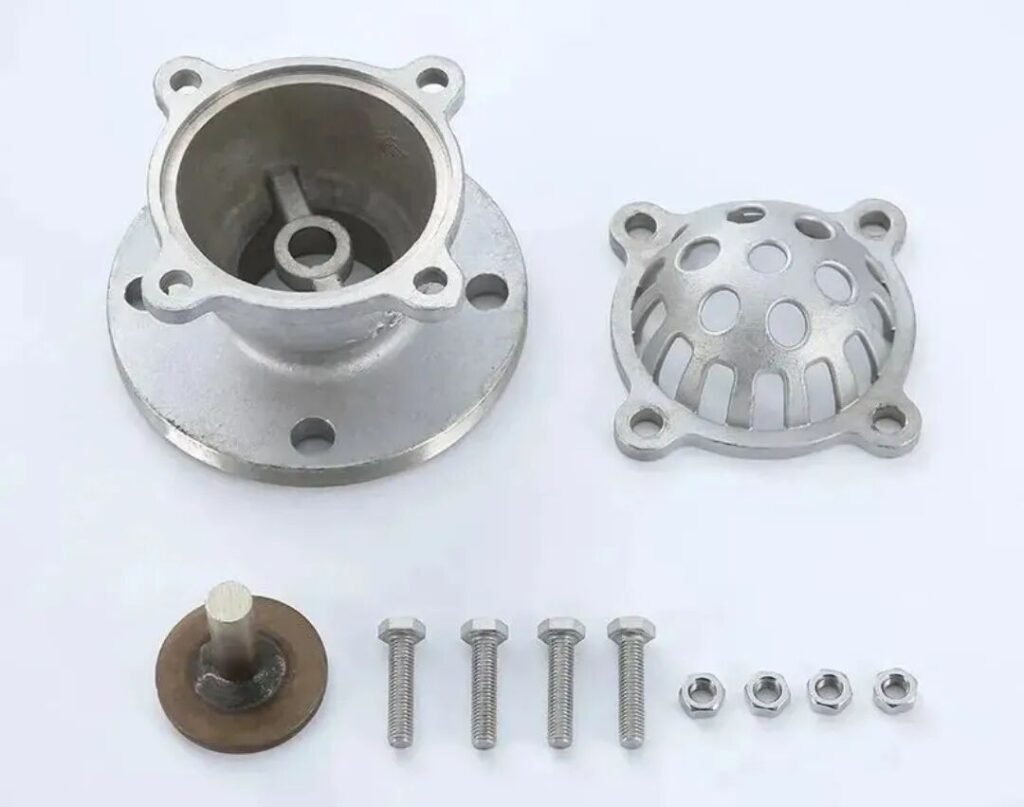

Most foot valves include a built-in strainer at the inlet.
Its purpose is to:
Block sand, gravel, leaves, fibers, and debris
Prevent clogging of pump impellers
Reduce wear on seals and internal components
Typical strainer openings range from 2 to 8 mm, selected based on fluid quality and pump tolerance.
In applications such as river water intake, wastewater transfer, or irrigation canals, this filtration function is critical for equipment safety and system longevity.
Why Foot Valves Matter in Real-World Systems
The combined functions of a foot valve translate into several practical system-level benefits.
1. Preventing Pump Damage from Dry Running
Dry running causes:
Seal overheating
Impeller damage
Motor burnout
By keeping the suction line full, foot valves eliminate one of the most common causes of pump failure.
2. Improving Energy Efficiency
Without a foot valve:
Each pump start requires re-priming
Time, water, and electricity are wasted
With a foot valve:
Start-up is immediate
Pressure losses are minimized
Energy consumption is reduced
In many systems, overall operating efficiency improves by 15–30%.
3. Extending Equipment Service Life
Foot valves reduce:
Debris-related wear
Pressure shocks caused by backflow
Maintenance frequency
In irrigation systems, for example, maintenance intervals can increase from monthly to semi-annual or annual, significantly lowering operating costs.
4. Adapting to Challenging Operating Conditions
Foot valves perform especially well in:
Dirty or sediment-laden fluids
Deep suction applications
Frequently cycled pump systems
Cold environments (with anti-freeze designs)
Their reliability under these conditions makes them indispensable in both temporary and permanent installations.

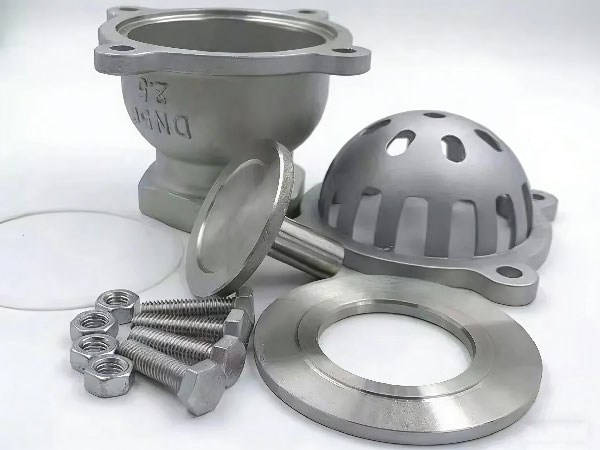

5. Simplifying System Design and Installation
Because foot valves combine:
Check valve
Strainer
Priming retention
They reduce the need for additional components. This simplifies piping layouts, lowers material costs, and shortens installation time—particularly beneficial for outdoor or mobile pumping systems.
Common Applications of Foot Valves
Foot valves are widely used in:
Water supply and distribution
Agricultural irrigation systems
Industrial fluid transfer
Municipal pumping stations
Wells, tanks, and reservoirs
Construction site dewatering
Key Selection Considerations
When choosing a foot valve, consider:
Fluid type and cleanliness
Required flow rate
Suction pipe diameter
Material compatibility (brass, cast iron, stainless steel, plastic)
Strainer size and cleaning access
Operating temperature and environment
Conclusion
A foot valve may seem like a small component, but its impact on pump performance and system reliability is significant. By preventing backflow, maintaining prime, and filtering debris, it protects pumps, improves efficiency, and reduces long-term maintenance costs.
For any system that relies on stable suction performance, a properly selected foot valve is not optional—it is essential.
